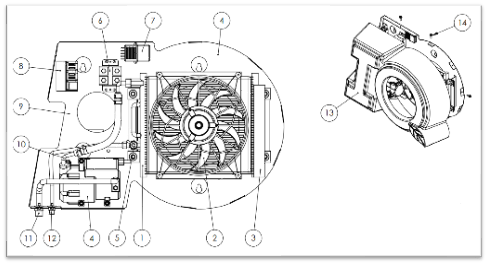

1
|
ACC001
|
Condenser Coil
|
|
ACC001 - Condenser Coil
|
|
2
|
FAN005
|
Condenser Fan – DC 12V – 12A
|
|
FAN005 - Condenser Fan – DC 12V – 12A
|
|
3
|
RDF002
|
Filter Drier
|
|
RDF002 - Filter Drier
|
|
4
|
CMP001
|
Compressor – DC 12V – 60A
|
|
CMP001 - Compressor – DC 12V – 60A
|
|
5
|
BPS002
|
Safety Pressure Switch
|
|
BPS002 - Safety Pressure Switch
|
|
6
|
TRB001
|
Electrical Terminal Block
|
|
TRB001 - Electrical Terminal Block
|
|
7
|
PWM001
|
Condenser Fan PWM Driver– DC 12V – 15A
|
|
PWM001 - Condenser Fan PWM Driver– DC 12V – 15A
|
|
8
|
RLA001
|
Relay Socket ASM
|
|
RLA001 - Relay Socket ASM
|
|
9
|
PLT001
|
Condenser Base Plate
|
|
PLT001 - Condenser Base Plate
|
|
10
|
FIT010
|
Compressor Discharge Line
|
|
FIT010 - Compressor Discharge Line
|
|
11
|
FIT013
|
Compressor Suction Port – SAE 7/8
|
|
FIT013 - Compressor Suction Port – SAE 7/8
|
|
12
|
FIT012
|
Liquid Line Port – ASE 5/8
|
|
FIT012 - Liquid Line Port – ASE 5/8
|
|
13
|
COV001
|
IQ Cover
|
|
COV001 - IQ Cover
|
|
14
|
BLA001
|
Bolt & Washer - M6*25mm (10 pcs)
|
|
BLA001 - Bolt & Washer - M6*25mm
|
